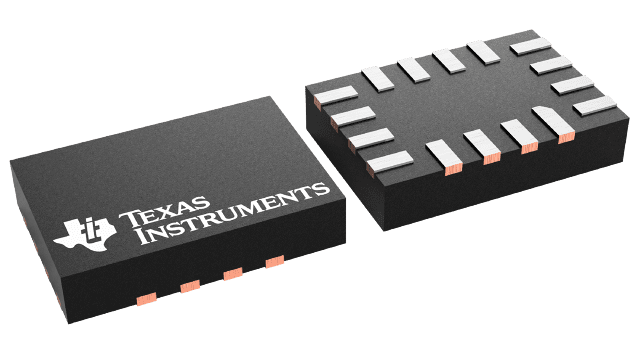

Texas Instruments
TS3USB32008RSVR
TS3USB32008RSVR
Regular price
$0.18 USD
Regular price
Sale price
$0.18 USD
Unit price
per
Couldn't load pickup availability
TS3USB32008RSVR Texas Instruments - Yeehing Electronics
USB 2.0 High-Speed and Mobile High-Definition Link Switch w/ ID Select and Flexible Power Control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.622 |
| 100 — 249 | 0.479 |
| 250 — 999 | 0.353 |
| 1,000 + | 0.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0, MHL, MyDP Multiplexers |
| Configuration | 1 x DPDT |
| On Resistance - Max | 6.5 Ohms |
| On Time - Max | 400 ns |
| Off Time - Max | 400 ns |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Packaging | Reel |
| Bandwidth | 5.5 GHz |
| Series | TS3USB3200 |
| Brand | Texas Instruments |
| Number of Switches | 2 Switch |
| Operating Supply Current | 70 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 4.3 V |
| Supply Voltage - Min | 2.7 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.001443 oz |
For more information, please refer to datasheet
Documents
| TS3USB32008RSVR Datasheet |
More Information
The TS3USB3200 is a differential single-pole, double throw (SPDT) multiplexer that includes a high-speed Mobile High-Definition Link (MHL) or Mobility Display Port (MyDP) switch and a USB 2.0 High-Speed (480 Mbps) switch in the same package. Additionally included is a single-pole, double throw (SPDT) USB/MHL or MyDP ID switch for easy information control. These configurations allow the system designer to use a common USB or Mico-USB connector for both MHL/MyDP video signals and USB data.
