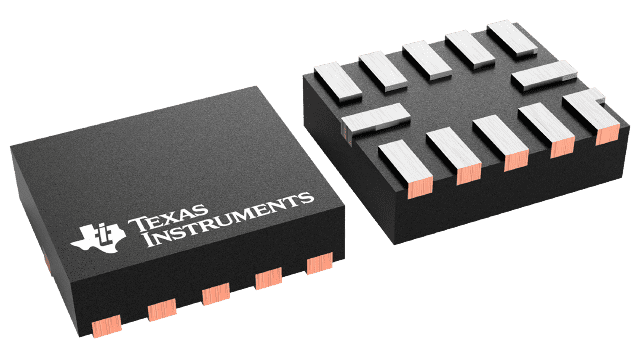

TS3USBA225RUTR Texas Instruments - Yeehing Electronics
DP3T USB 2.0 HIGH-SPEED (480Mbps) AND AUDIO SWITCHES
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.847 |
100 — 249 | 0.699 |
250 — 999 | 0.502 |
1,000 + | 0.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | USB Switch ICs |
RoHS | Y |
Product | USB 2.0, Audio Switches |
Configuration | 2 x SP3T |
On Resistance - Max | 7.5 Ohms |
On Time - Max | 60 ns |
Off Time - Max | 60 ns |
Operating Supply Voltage | 2.7 V to 5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | UQFN-12 |
Packaging | Reel |
Bandwidth | 1.9 GHz |
Series | TS3USBA225 |
Brand | Texas Instruments |
Number of Switches | 2 Switch |
Operating Supply Current | 25 uA |
Product Type | USB Switch ICs |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 2.7 V |
Switch Continuous Current | 100 mA |
Unit Weight | 0.000134 oz |
For more information, please refer to datasheet
Documents
TS3USBA225RUTR Datasheet |
More Information
The TS3USBA225 is a 2-channel single-pole triple-throw (SP3T) multiplexer that supports USB 2.0 High-Speed (480 Mbps) signals in all 3 differential channels. The first two high-speed differential channels also support Mobile High Definition Link (MHL) signaling with resolution and video frame rates up to 720p, 60 fps and 1080i, 30 fps. The remaining differential channel can also be used as an audio switch that is designed to allow analog audio signals to swing negatively. This configuration allows the system designer to use a common connector for audio and USB 2.0 or MHL data.
