Texas Instruments
TS3USBCA420IRSVT
TS3USBCA420IRSVT
Regular price
$0.38 USD
Regular price
Sale price
$0.38 USD
Unit price
per
Couldn't load pickup availability

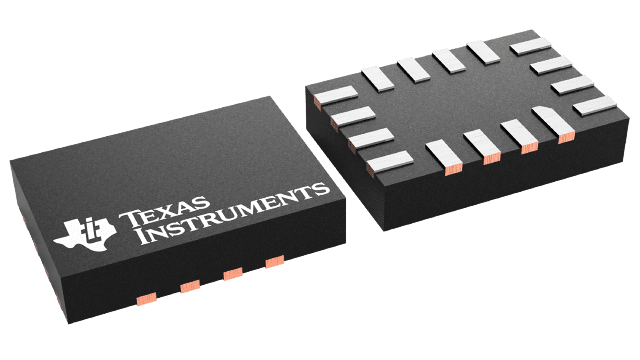

TS3USBCA420IRSVT Texas Instruments - Yeehing Electronics
USB Type-C SBU Multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.324 |
| 100 — 249 | 1.018 |
| 250 — 999 | 0.75 |
| 1,000 + | 0.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Series | TS3USBCA4 |
| Product | USB Multiplexers |
| Type | Type-C |
| Standard | USB 2.0 |
| Speed | High Speed |
| Supply Voltage - Min | 2.4 V |
| Supply Voltage - Max | 5.5 V |
| Operating Supply Current | 45 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Operating Supply Voltage | 5 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
For more information, please refer to datasheet
Documents
| TS3USBCA420IRSVT Datasheet |
More Information
The TS3USBCA4 is a passive 4:1 (TS3USBCA420) and 3:1 (TS3USBCA410) MUX supporting various types of differential or single-ended signals on the SBU1/SBU2 terminals of a USB Type-C connector to different interfaces. Those signals can be differential DisplayPort auxiliary (AUX), analog audio MIC and AGND, PCIe differential clock, or any other supported generic differential or single-ended signals.
