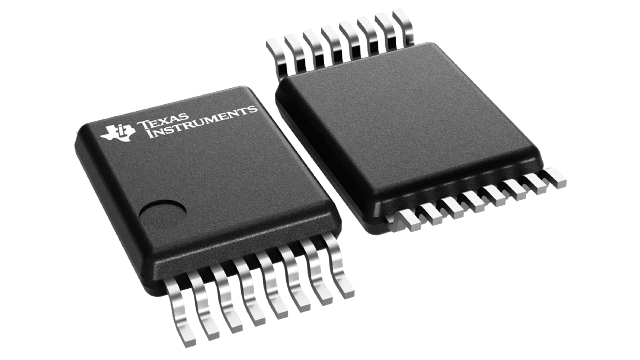

TS3V330DGVR Texas Instruments - Yeehing Electronics

3.3-V, 2:1 (SPDT), 4-channel video switch

Pricing (USD)

Quantity	Unit Price
1 — 99	0.598
100 — 249	0.46
250 — 999	0.339
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Video Switch ICs
RoHS	Y
Product	Video Switches
Configuration	4 x SPDT
On Resistance - Max	10 Ohms
Bandwidth	300 MHz
On Time - Max	6.5 ns
Off Time - Max	3.5 ns
Operating Supply Voltage	3 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-16
Packaging	Reel
Height	1.05 mm
Length	3.6 mm
Series	TS3V330
Supply Type	Single Supply
Width	4.4 mm
Brand	Texas Instruments
Off Isolation - Typ	- 50 dB
Supply Current - Max	10 uA
Number of Switches	4 Switch
Product Type	Video Switch ICs
Propagation Delay Time	6.5 ns
Factory Pack Quantity	2000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Switch Continuous Current	100 mA
Switch Voltage - Max	3.3 V
Unit Weight	0.001478 oz

For more information, please refer to datasheet

Documents

TS3V330DGVR Datasheet

More Information

The TS3V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer, with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.
