Texas Instruments

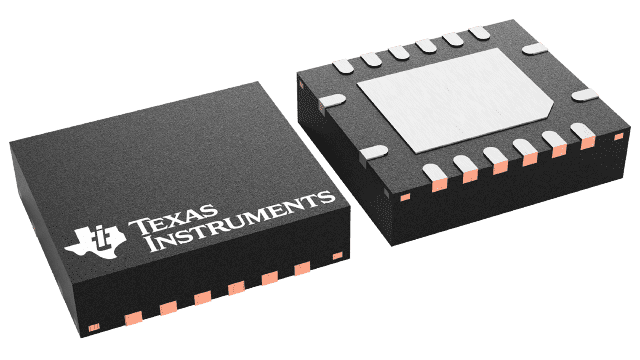

TS3V330RGYR
TS3V330RGYR
Regular price
$0.14 USD
Regular price
Sale price
$0.14 USD
Unit price
per
Couldn't load pickup availability
TS3V330RGYR Texas Instruments - Yeehing Electronics
3.3-V, 2:1 (SPDT), 4-channel video switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.598 |
| 100 — 249 | 0.46 |
| 250 — 999 | 0.339 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video Switch ICs |
| RoHS | Y |
| Product | Video Switches |
| Configuration | 4 x SPDT |
| On Resistance - Max | 10 Ohms |
| Bandwidth | 300 MHz |
| On Time - Max | 6.5 ns |
| Off Time - Max | 3.5 ns |
| Operating Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 4 mm |
| Series | TS3V330 |
| Supply Type | Single Supply |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 50 dB |
| Supply Current - Max | 10 uA |
| Moisture Sensitive | Yes |
| Number of Switches | 4 Switch |
| Product Type | Video Switch ICs |
| Propagation Delay Time | 6.5 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Switch Continuous Current | 100 mA |
| Switch Voltage - Max | 3.3 V |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| TS3V330RGYR Datasheet |
More Information
The TS3V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer, with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.
