Description

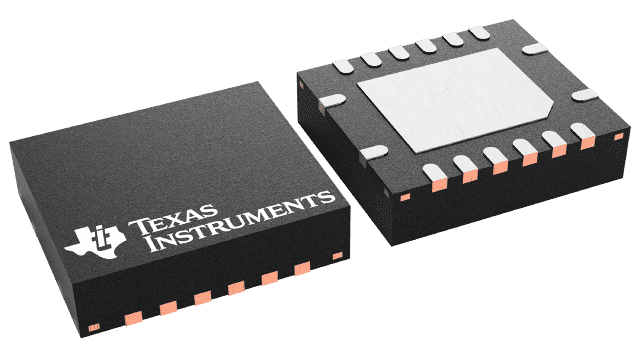

TS3V340RGYR Texas Instruments - Yeehing Electronics
3.3-V, 2:1 (SPDT), 4-channel video switch with flat on-state resistance
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.958 |
100 — 249 | 0.737 |
250 — 999 | 0.543 |
1,000 + | 0.27 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TS3V340RGYR Datasheet |
More Information
The TI video switch TS3V340 is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.
