TS3V712ELRTGR Texas Instruments - Yeehing Electronics

5-V, 1:2 (SPDT), 7-channel VGA SPDT switch with level shifters (pinout variant #1)

Pricing (USD)

Quantity	Unit Price
1 — 99	3.583
100 — 249	3.14
250 — 999	2.202
1,000 +	1.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Video Switch ICs
RoHS	Y
Product	Video Switches
Configuration	1 x 1
On Resistance - Max	9 Ohms
Bandwidth	1.3 GHz
On Time - Max	13 ns
Off Time - Max	13 ns
Operating Supply Voltage	3.3 V, 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

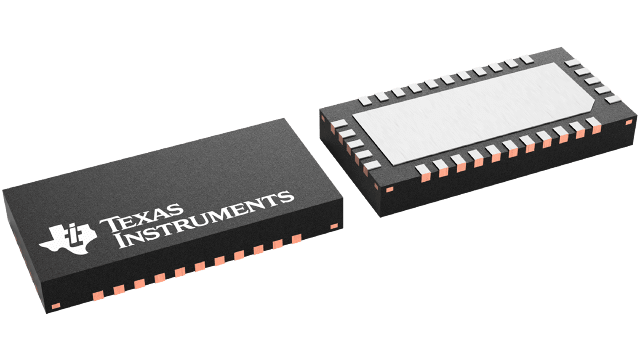

Package / Case	WQFN-32
Packaging	Reel
Series	TS3V712EL
Supply Type	Dual Supply
Brand	Texas Instruments
Number of Channels	7 Channel
Moisture Sensitive	Yes
Product Type	Video Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V, 5.5 V
Supply Voltage - Min	3 V, 4.5 V
Switch Continuous Current	100 mA
Switch Voltage - Max	3.6 V, 5.5 V
Unit Weight	0.009524 oz

For more information, please refer to datasheet

Documents

TS3V712ELRTGR Datasheet

More Information

The TS3V712EL is a high bandwidth, 7-channel video demultiplexer for switching between a single VGA source and one of two end points. The device is designed for ensuring video signal integrity and minimizing video signal attenuation by providing high bandwidth of 1.3 GHz.
