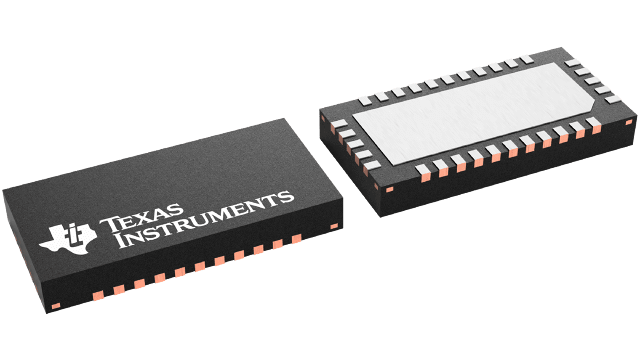

TS3V712ERTGR Texas Instruments - Yeehing Electronics

3.3-V, 1:2 (SPDT), 7-channel VGA SPDT switch

Pricing (USD)

Quantity	Unit Price
1 — 99	3.583
100 — 249	3.14
250 — 999	2.202
1,000 +	0.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Video Switch ICs
RoHS	Y
Product	Video Switches
Configuration	1 x 1
On Resistance - Max	9 Ohms
Bandwidth	1.3 GHz
On Time - Max	13 ns
Off Time - Max	12 ns
Operating Supply Voltage	3.3 V, 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-32
Packaging	Reel
Series	TS3V712E
Supply Type	Dual Supply
Brand	Texas Instruments
Number of Channels	7 Channel
Moisture Sensitive	Yes
Product Type	Video Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	3.6 V, 5.5 V
Supply Voltage - Min	3 V, 4.5 V
Switch Continuous Current	100 mA
Switch Voltage - Max	3.6 V, 5.5 V
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

TS3V712ERTGR Datasheet

More Information

The TS3V712E is a high-bandwidth, 7-channel video multiplexer/demultiplexer for switching between multiple VGA sources or end points. The device is designed for ensuring video signal integrity and minimizing the video signal attenuation by providing high bandwidth of 1.36 GHz.
