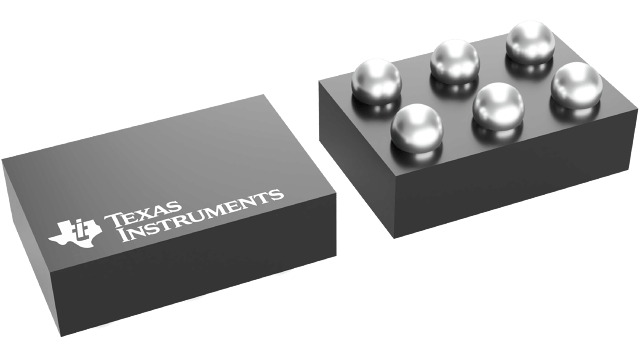

TS5A12301EYFPR Texas Instruments - Yeehing Electronics
0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with 1.8-V input logic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.593 |
| 100 — 249 | 0.456 |
| 250 — 999 | 0.336 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 1 Switch |
| Configuration | 1 x SPDT |
| On Resistance - Max | 750 mOhms |
| Switch Voltage - Max | 5 V |
| On Time - Max | 225 ns |
| Off Time - Max | 215 ns |
| Operating Supply Voltage | 2.25 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Packaging | Reel |
| Height | 0.33 mm |
| Length | 1.2 mm |
| Series | TS5A12301E |
| Supply Type | Single Supply |
| Width | 0.8 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 10 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.25 V |
| Switch Continuous Current | 100 mA |
| Tradename | NanoStar |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| TS5A12301EYFPR Datasheet |
More Information
The TS5A12301E device is a bidirectional, 1-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with excellent channel-to-channel ON-state resistance matching and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to another.
