Description

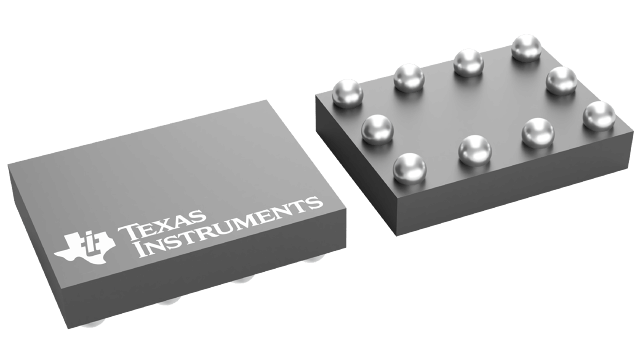

TS5A22362YZPR Texas Instruments - Yeehing Electronics
0.65-V, 2:1 (SPDT), 2-channel analog switch with negative signaling capability
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.88 |
| 100 — 249 | 0.727 |
| 250 — 999 | 0.522 |
| 1,000 + | 0.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TS5A22362YZPR Datasheet |
More Information
The TS5A22362 is a bidirectional, 2-channel single-pole double-throw (SPDT) analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal swing capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The 3.00 mm × 3.00 mm DRC package is also available as a nonmagnetic package for medical imaging application.
