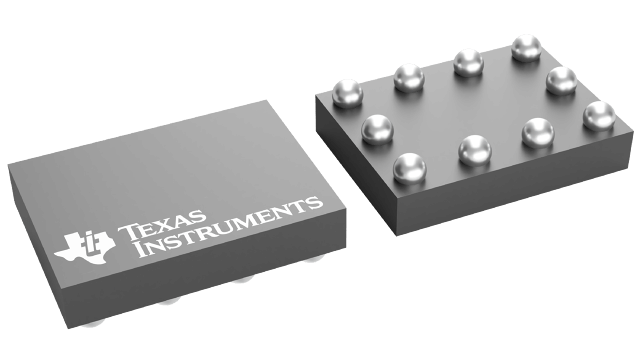

TS5A22364YZPR


YeeHing #: Y015-TS5A22364YZPR
Inventory: 5600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TS5A22364YZPR Texas Instruments - Yeehing Electronics

0.65-Ω, 5-V, 2:1 (SPDT), 2-channel analog switch with negative signaling capability

Pricing (USD)

Quantity Unit Price
1 — 99 0.764
100 — 249 0.631
250 — 999 0.453
1,000 + 0.24

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog Switch ICs
RoHS Y
Number of Switches 2 Switch
Configuration 2 x SPDT
On Resistance - Max 740 mOhms
Switch Voltage - Max 5 V
On Time - Max 80 ns
Off Time - Max 70 ns
Operating Supply Voltage 2.3 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-10
Packaging Reel
Height 0.3 mm
Length 1.9 mm
Series TS5A22364
Supply Type Single Supply
Width 1.4 mm
Brand Texas Instruments
Supply Current - Max 1.3 uA
Product Type Analog Switch ICs
Factory Pack Quantity 3000
Subcategory Switch ICs
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.3 V
Switch Continuous Current 100 mA
Unit Weight 0.000102 oz

For more information, please refer to datasheet

Documents

TS5A22364YZPR Datasheet

More Information

The TS5A22364 is a bidirectional, 2-channel, single-pole double-throw (SPDT) analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion. Additionally, the TS5A22364 includes an internal shunt switch, which automatically discharges any capacitance at the NC or NO terminals when they are unconnected to COM. This reduces the audible click/pop noise when switching between two sources. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The 3.00-mm x 3.00-mm DRC package is also available as a nonmagnetic package for medical imaging applications.
