Texas Instruments
TS5A23157RSER
TS5A23157RSER
Regular price
$0.17 USD
Regular price
Sale price
$0.17 USD
Unit price
per
Couldn't load pickup availability

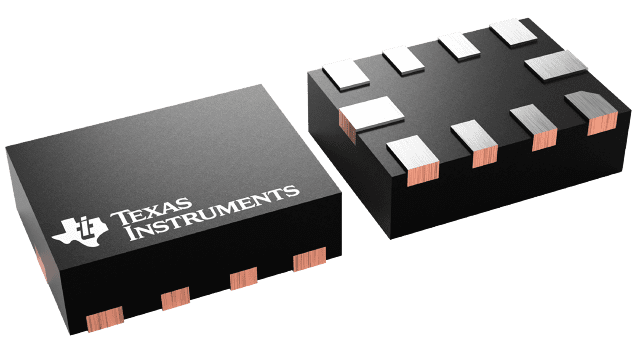

TS5A23157RSER Texas Instruments - Yeehing Electronics
5-V, 2:1 (SPDT), 2-channel analog switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.615 |
| 100 — 249 | 0.473 |
| 250 — 999 | 0.348 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 2 Switch |
| Configuration | 2 x SPDT |
| On Resistance - Max | 10 Ohms |
| Switch Voltage - Max | 5 V |
| On Time - Max | 5.7 ns |
| Off Time - Max | 3.8 ns |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-10 |
| Packaging | Reel |
| Height | 0.55 mm |
| Length | 1.5 mm |
| Series | TS5A23157 |
| Supply Type | Single Supply |
| Width | 2 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 1 uA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000247 oz |
For more information, please refer to datasheet
Documents
| TS5A23157RSER Datasheet |
More Information
The TS5A23157 device is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction.
