TS5A23159RSER Texas Instruments - Yeehing Electronics

1-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with powered-off protection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.706
100 — 249	0.543
250 — 999	0.4
1,000 +	0.20

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Switch ICs
RoHS	Y
Number of Switches	2 Switch
Configuration	2 x SPDT
On Resistance - Max	1.1 Ohms
Switch Voltage - Max	5 V
On Time - Max	13 ns
Off Time - Max	8 ns
Operating Supply Voltage	1.65 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

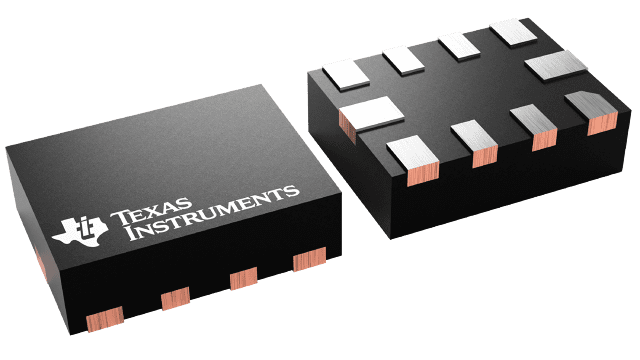

Package / Case	UQFN-10
Packaging	Reel
Height	0.55 mm
Length	1.5 mm
Series	TS5A23159
Supply Type	Single Supply
Width	2 mm
Brand	Texas Instruments
Supply Current - Max	0.5 uA
Product Type	Analog Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Switch Continuous Current	100 mA
Unit Weight	0.000247 oz

For more information, please refer to datasheet

Documents

TS5A23159RSER Datasheet

More Information

The TS5A23159 is a bidirectional 2-channel single-pole double-throw (SPDT) switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.
