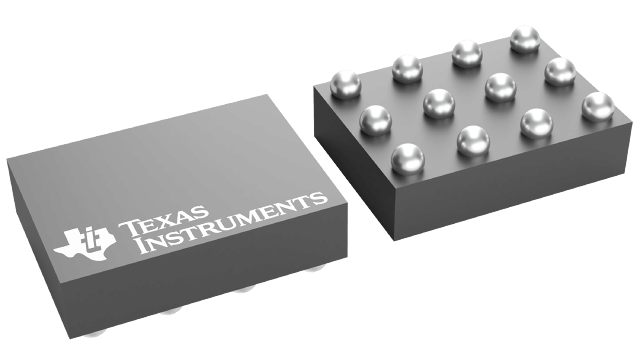

TS5A26542YZTR Texas Instruments - Yeehing Electronics
0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with input logic translation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.763 |
100 — 249 | 0.587 |
250 — 999 | 0.432 |
1,000 + | 0.22 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog Switch ICs |
RoHS | Y |
Number of Switches | 2 Switch |
Configuration | 2 x SPDT |
On Resistance - Max | 750 mOhms |
Switch Voltage - Max | 5 V |
On Time - Max | 25 ns |
Off Time - Max | 20 ns |
Operating Supply Voltage | 2.25 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-12 |
Packaging | Reel |
Height | 0.48 mm |
Length | 1.9 mm |
Series | TS5A26542 |
Supply Type | Single Supply |
Width | 1.4 mm |
Brand | Texas Instruments |
Supply Current - Max | 0.5 uA |
Product Type | Analog Switch ICs |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 2.25 V |
Switch Continuous Current | 100 mA |
Tradename | NanoStar |
Unit Weight | 0.000085 oz |
For more information, please refer to datasheet
Documents
TS5A26542YZTR Datasheet |
More Information
The TS5A26542 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to the another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
