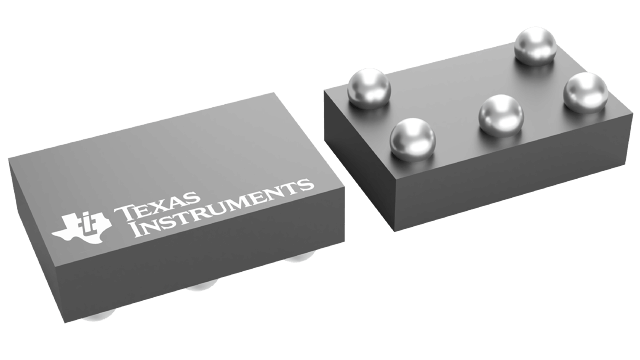

TS5A3166YZPR Texas Instruments - Yeehing Electronics

0.9-Ω on-state resistance, 5-V, 1:1 (SPST), 1-channel analog switch (active high)

Pricing (USD)

Quantity	Unit Price
1 — 99	0.462
100 — 249	0.314
250 — 999	0.242
1,000 +	0.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Switch ICs
RoHS	Y
Number of Switches	1 Switch
Configuration	1 x SPDT
On Resistance - Max	900 mOhms
Switch Voltage - Max	5 V
On Time - Max	7 ns
Off Time - Max	11.5 ns
Operating Supply Voltage	1.65 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-5
Packaging	Reel
Height	0.3 mm
Length	1.4 mm
Series	TS5A3166
Supply Type	Single Supply
Width	0.9 mm
Brand	Texas Instruments
Supply Current - Max	0.8 uA
Product Type	Analog Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Switch Continuous Current	100 mA
Tradename	NanoStar
Unit Weight	0.000056 oz

For more information, please refer to datasheet

Documents

TS5A3166YZPR Datasheet

More Information

The TS5A3166 device is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
