Texas Instruments

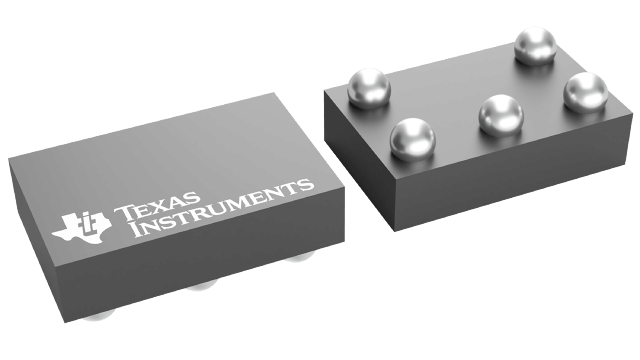

TS5A3167YZPR
TS5A3167YZPR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
TS5A3167YZPR Texas Instruments - Yeehing Electronics
0.9-Ω on-state resistance, 5-V, 1:1 (SPST), 1-channel analog switch (active low)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.514 |
| 100 — 249 | 0.349 |
| 250 — 999 | 0.269 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Switch ICs |
| RoHS | Y |
| Number of Switches | 1 Switch |
| Configuration | 1 x SPST |
| On Resistance - Max | 900 mOhms |
| Switch Voltage - Max | 5 V |
| On Time - Max | 7 ns |
| Off Time - Max | 11.5 ns |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-5 |
| Packaging | Reel |
| Height | 0.3 mm |
| Length | 1.4 mm |
| Series | TS5A3167 |
| Supply Type | Single Supply |
| Width | 0.9 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 100 nA |
| Product Type | Analog Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Switch Continuous Current | 100 mA |
| Tradename | NanoStar |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| TS5A3167YZPR Datasheet |
More Information
The TS5A3167 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A3167 device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
