Texas Instruments
TS5MP645NYFPR
TS5MP645NYFPR
Regular price
$0.47 USD
Regular price
Sale price
$0.47 USD
Unit price
per
Couldn't load pickup availability

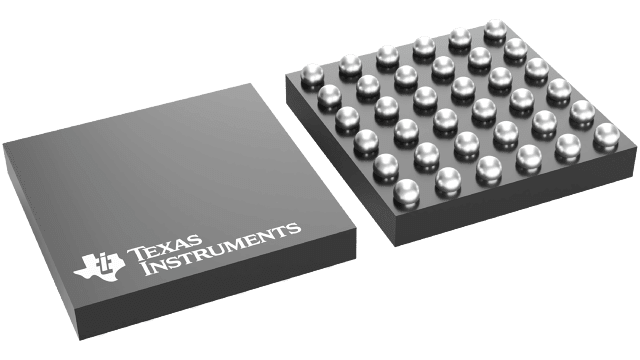

TS5MP645NYFPR Texas Instruments - Yeehing Electronics
1.5-pF, 5-V, 2:1 (SPDT), 10-channel MIPI analog switch with powered-off protection & 1.8-V logic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.49 |
| 100 — 249 | 1.23 |
| 250 — 999 | 0.884 |
| 1,000 + | 0.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Multiplexer Switch ICs |
| RoHS | Y |
| Product | Multiplexers |
| Number of Channels | 10 Channel |
| Configuration | 10 x 2 |
| On Resistance - Max | 6.5 Ohms |
| On Time - Max | 300 us |
| Off Time - Max | 1 ms |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-36 |
| Packaging | Reel |
| Bandwidth | 1.5 GHz |
| Series | TS5MP645 |
| Supply Type | Single Supply |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 20 dB |
| Supply Current - Max | 60 uA |
| Product Type | Multiplexer Switch ICs |
| Propagation Delay Time | 40 ps |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Unit Weight | 0.000205 oz |
For more information, please refer to datasheet
Documents
| TS5MP645NYFPR Datasheet |
More Information
The TS5MP645 is a four data lane MIPI switch. This device is an optimized 10 channel (5 differential) single-pole, double-throw switch for use in high speed applications. The TS5MP645 is designed to facilitate multiple MIPI compliant devices to connect to a single CSI/DSI, C-PHY/D-PHY module.
