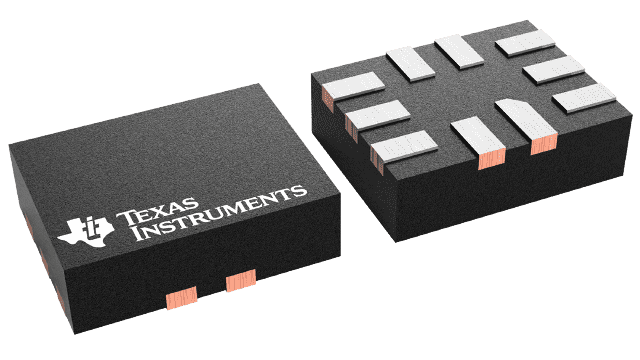

Texas Instruments
TS5USBA224RSWR
TS5USBA224RSWR
Regular price
$0.19 USD
Regular price
Sale price
$0.19 USD
Unit price
per
Couldn't load pickup availability
TS5USBA224RSWR Texas Instruments - Yeehing Electronics
USB 2.0 High-Speed (480Mbps) and Audio Switches with Negative Signal Capability
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.612 |
| 100 — 249 | 0.505 |
| 250 — 999 | 0.363 |
| 1,000 + | 0.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0, Audio Switches |
| Configuration | 1 x DPDT |
| On Resistance - Max | 7 Ohms |
| On Time - Max | 4 us |
| Off Time - Max | 2000 ns |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-10 |
| Packaging | Reel |
| Bandwidth | 650 MHz |
| Series | TS5USBA224 |
| Brand | Texas Instruments |
| Number of Switches | 2 Switch |
| Operating Supply Current | 10 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
| TS5USBA224RSWR Datasheet |
More Information
The TS5USBA224 is a double-pole, double throw (DPDT) multiplexer that includes a low-distortion audio switch and a USB 2.0 High-Speed (480Mbps) switch in the same package. This configuration allows the system designer to use a common connector for audio and USB data. The audio switch is designed to allow audio signals to swing below ground which makes this common connector configuration possible.
