Texas Instruments
TS5USBC400IYFPR
TS5USBC400IYFPR
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
per
Couldn't load pickup availability
TS5USBC400IYFPR Texas Instruments - Yeehing Electronics
Dual 2:1 USB 2.0 Mux/DeMux or Single Ended Cross Switch with 16-V OVP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.58 |
| 100 — 249 | 0.447 |
| 250 — 999 | 0.329 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0 Multiplexers/Demultiplexers |
| Configuration | 2 x 2 |
| On Resistance - Max | 9 Ohms |
| On Time - Max | 250 us |
| Off Time - Max | 1 us |
| Operating Supply Voltage | 2.3 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

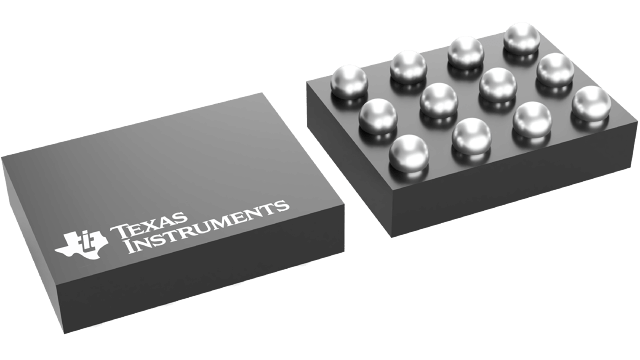

| Package / Case | DSBGA-12 |
| Packaging | Reel |
| Bandwidth | 1.1 GHz |
| Series | TS5USBC400 |
| Brand | Texas Instruments |
| Number of Switches | 2 Switch |
| Operating Supply Current | 72 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.3 V |
| Switch Continuous Current | 100 mA |
| Unit Weight | 0.000067 oz |
For more information, please refer to datasheet
Documents
| TS5USBC400IYFPR Datasheet |
More Information
The TS5USBC400 is a bidirectional low-power dual port, high-speed, USB 2.0 analog switch with integrated protection for USB Type-C™ systems. The device is configured as a dual 2:1 or 1:2 switch and is optimized for handling the USB 2.0 D+/- lines in a USB Type-C™ systems.
