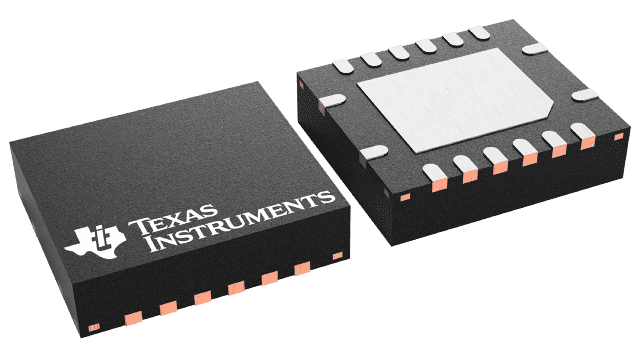

TS5V330RGYR Texas Instruments - Yeehing Electronics
5-V, 2:1 (SPDT), 4-channel video switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.047 |
| 100 — 249 | 0.806 |
| 250 — 999 | 0.593 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video Switch ICs |
| RoHS | Y |
| Product | Video Switches |
| Configuration | 4 x SPDT |
| On Resistance - Max | 10 Ohms |
| Bandwidth | 250 MHz |
| On Time - Max | 6 ns |
| Off Time - Max | 6 ns |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 4 mm |
| Series | TS5V330 |
| Supply Type | Single Supply |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Off Isolation - Typ | - 60 dB |
| Supply Current - Max | 3 uA |
| Moisture Sensitive | Yes |
| Number of Switches | 4 Switch |
| Product Type | Video Switch ICs |
| Propagation Delay Time | 5 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Switch Continuous Current | 100 mA |
| Switch Voltage - Max | 4.5 V |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| TS5V330RGYR Datasheet |
More Information
The TS5V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.
