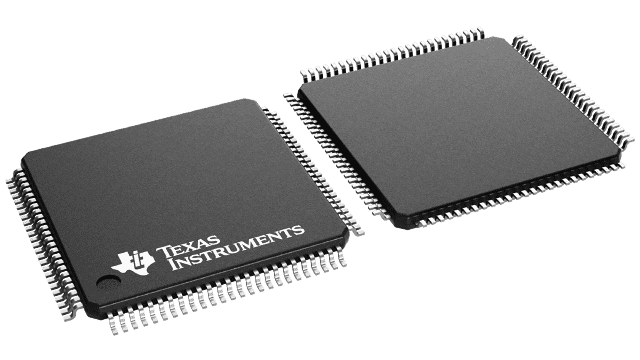

TSB12LV01BPZT Texas Instruments - Yeehing Electronics

High performance 1394 3.3-V link layer for telecom, embedded & industrial app.,32-bit i/f, 2kb FIFO

Pricing (USD)

Quantity	Unit Price
1 — 99	17.593
100 — 249	15.367
250 — 999	11.849
1,000 +	7.42

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	1394 Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TQFP-100
Series	TSB12LV01B
Product	IEEE 1394a
Type	Serial Bus Link Layer Controller
Data Rate	400 Mb/s
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Tray
Description/Function	HIGH PERFORMANCE 1394 3.3V LINK LAYER FOR TELECOM, EMBEDDED & INDUSTRIAL APP.,32-BIT I/F, 2KB FIFO
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	1394 Interface IC
Protocol Supported	1394
Factory Pack Quantity	90
Subcategory	Interface ICs
Unit Weight	0.023175 oz

For more information, please refer to datasheet

Documents

TSB12LV01BPZT Datasheet

More Information

The TSB12LV01B is an IEEE 1394-1995 standard (from now on referred to only as 1394) high-speed serial-bus link-layer controller that allows for easy integration into an I/O subsystem. The TSB12LV01B provides a high-performance IEEE 1394-1995 interface with the capability of transferring data between the 32-bit host bus, the 1394 PHY-link interface, and external devices connected to the local bus interface. The 1394 PHY-link interface provides the connection to the 1394 physical (PHY) layer device and is supported by the link-layer controller (LLC). The LLC provides the control for transmitting and receiving 1394 packet data between the FIFO and PHY-link interface at rates of 100 Mbits/s, 200 Mbits/s, and 400 Mbits/s. The TSB12LV01B transmits and receives correctly-formatted 1394 packets and generates and inspects the 32-bit cyclic redundancy check (CRC). The TSB12LV01B is capable of being cycle master and supports reception of isochronous data on two channels. TSB12LV01B has a generic 32-bit host bus interface, which will connect to most 32-bit hosts. The LLC also provides the capability to receive status from the physical layer device and to access the physical layer control and status registers by the application software. An internal 2K-byte memory is provided that can be configured as multiple variable-size FIFOs and eliminates the need for external FIFOs. Separate FIFOs can be user configured to support general 1394 receive, asynchronous transmit, and isochronous transmit transfer operations. These functions are accomplished by appropriately sizing the general receive FIFO (GRF), asynchronous transmit FIFO (ATF), and isochronous transmit FIFO (ITF).
