TSB41AB1PHP Texas Instruments - Yeehing Electronics

IEEE 1394a 1-port cable transceiver/arbiter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.788
100 — 249	3.319
250 — 999	2.327
1,000 +	1.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	1394 Interface IC
RoHS	Y
Mounting Style	SMD/SMT

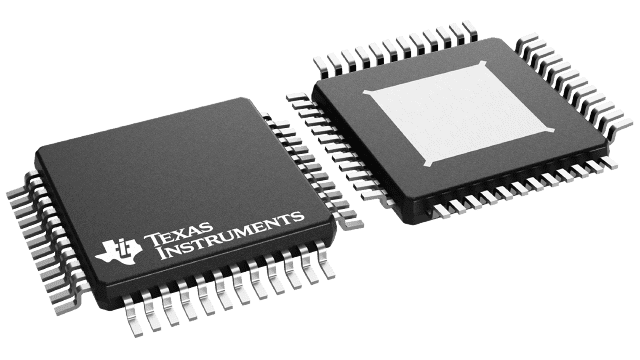

Package / Case	HTQFP-48
Series	TSB41AB1
Product	IEEE 1394a
Type	One Port Cable Transceiver/Arbiter
Data Rate	400 Mb/s
Operating Supply Voltage	3.3 V
Operating Supply Current	48 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Tray
Description/Function	IEEE 1394A ONE-PORT CABLE TRANSCEIVER/ARBITER
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	1394 Interface IC
Protocol Supported	1394
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.004744 oz

For more information, please refer to datasheet

Documents

TSB41AB1PHP Datasheet

More Information

The TSB41AB1 provides the digital and analog transceiver functions needed to implement a one-port node in a cable-based IEEE 1394 network. The cable port incorporates one differential line transceiver. The transceiver includes circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41AB1 is designed to interface with a link layer controller (LLC), such as the TSB12LV21, TSB12LV22, TSB12LV23, TSB12LV26, TSB12LV31, TSB12LV41, TSB12LV42, or TSB12LV01A.
