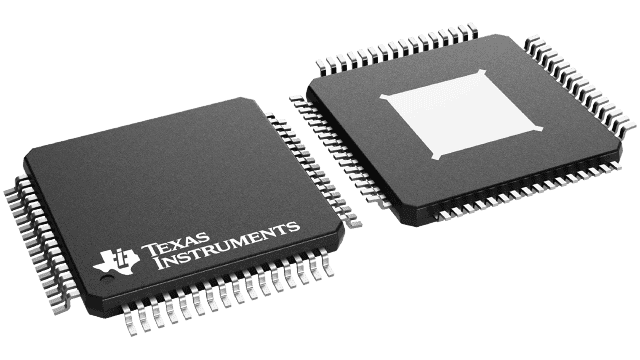

TSB41AB2PAP Texas Instruments - Yeehing Electronics
IEEE 1394a 2-port cable transceiver/arbiter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.696 |
| 100 — 249 | 3.828 |
| 250 — 999 | 3.009 |
| 1,000 + | 1.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 1394 Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Series | TSB41AB2 |
| Product | IEEE 1394a |
| Data Rate | 400 Mb/s |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 71 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tray |
| Description/Function | IEEE 1394A TWO-PORT CABLE TRANSCEIVER/ARBITER |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | 1394 Interface IC |
| Protocol Supported | 1394 |
| Factory Pack Quantity | 160 |
| Subcategory | Interface ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
| TSB41AB2PAP Datasheet |
More Information
The TSB41AB2 provides the digital and analog transceiver functions needed to implement a two-port node in a cable-based IEEE 1394 network. The cable ports incorporate two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41AB2 is designed to interface with a link layer controller (LLC), such as the TSB12LV21, TSB12LV22, TSB12LV23, TSB12LV26, TSB12LV31, TSB12LV41, TSB12LV42, or TSB12LV01A.
