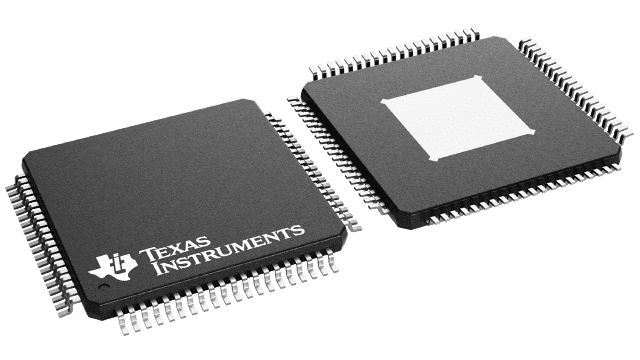

TSB41AB3IPFPEP Texas Instruments - Yeehing Electronics
Enhanced product IEEE 1394a 3-port cable transceiver/arbiter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.467 |
| 100 — 249 | 20.499 |
| 250 — 999 | 15.805 |
| 1,000 + | 9.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 1394 Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Series | TSB41AB3-EP |
| Product | IEEE 1394 |
| Type | Three Port Cable Transceiver/Arbiter |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Description/Function | ENHANCED PRODUCT IEEE 1394A THREE-PORT CABLE TRANSCEIVER/ARBITER |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | 1394 Interface IC |
| Protocol Supported | IEEE 1394 |
| Factory Pack Quantity | 96 |
| Subcategory | Interface ICs |
| Part # Aliases | V62/03612-01XE |
| Unit Weight | 0.012984 oz |
For more information, please refer to datasheet
Documents
| TSB41AB3IPFPEP Datasheet |
More Information
The TSB41AB3 provides the digital and analog transceiver functions required to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41AB3 is designed to interface with a line layer controller (LLC), such as the TSB12LV21, TSB12LV22, TSB12LV23, TSB12LV26, TSB12LV31, TSB12LV41, TSB12LV42, or TSB12LV01A.
