TSB41BA3BTPFPEP Texas Instruments - Yeehing Electronics

Enhanced product IEEE 1394b three-port cable transceiver/arbiter

Pricing (USD)

Quantity	Unit Price
1 — 99	45.248
100 — 249	39.524
250 — 999	30.474
1,000 +	19.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	105
Factory Pack Quantity	96

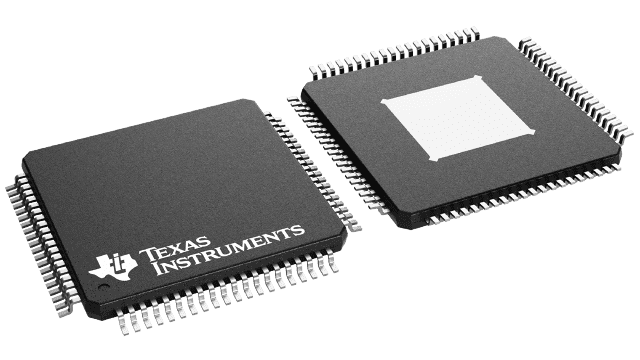

Package | Pins	HTQFP (PFP) | 80

For more information, please refer to datasheet

Documents

TSB41BA3BTPFPEP Datasheet

More Information

The TSB41BA3B-EP provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41BA3B-EP interfaces with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It can also be connected via cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
