TSB41BA3DIPFP Texas Instruments - Yeehing Electronics
S400 capable 1394b PHY
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 13.386 |
100 — 249 | 11.693 |
250 — 999 | 9.016 |
1,000 + | 5.64 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 85 |
Factory Pack Quantity | 96 |

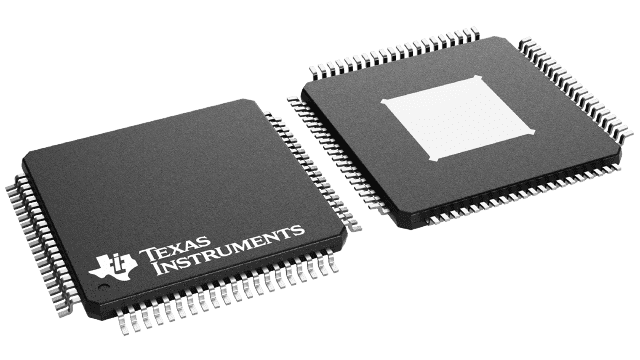

Package | Pins | HTQFP (PFP) | 80 |
For more information, please refer to datasheet
Documents
TSB41BA3DIPFP Datasheet |
More Information
The TSB41BA3D provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41BA3D interfaces with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It can also be connected via cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
