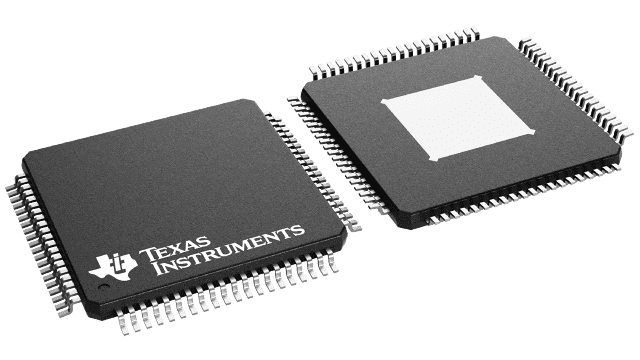

TSB41BA3DPFP Texas Instruments - Yeehing Electronics

S400 capable 1394b PHY

Pricing (USD)

Quantity	Unit Price
1 — 99	12.218
100 — 249	10.672
250 — 999	8.228
1,000 +	5.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	1394 Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTQFP-80
Series	TSB41BA3D
Product	IEEE 1394a, 1394b
Data Rate	400 Mb/s
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Description/Function	S400 CAPABLE 1394B PHYSICAL LAYER (PHY)
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	1394 Interface IC
Protocol Supported	1394
Factory Pack Quantity	96
Subcategory	Interface ICs
Unit Weight	0.012984 oz

For more information, please refer to datasheet

Documents

TSB41BA3DPFP Datasheet

More Information

The TSB41BA3D provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41BA3D interfaces with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It can also be connected via cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
