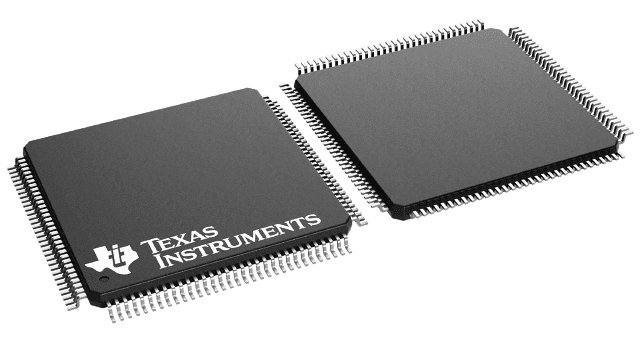

TSB43AB22APDT


YeeHing #: Y007-TSB43AB22APDT
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TSB43AB22APDT Texas Instruments - Yeehing Electronics

OHCI 1.1, 1394a link layer controller with integrated IEEE 1394a, 400-Mbps, 2-port PHY

Pricing (USD)

Quantity Unit Price
1 — 99 7.077
100 — 249 5.769
250 — 999 4.534
1,000 + 2.69

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 1394 Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case TQFP-128
Series TSB43AB22A
Product IEEE 1394a
Type OHCI Lynx Controller
Data Rate 400 Mb/s
Operating Supply Voltage 3 V to 3.6 V
Operating Supply Current 92.4 mA
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Packaging Tray
Description/Function OHCI 1.1, 1394A LINK LAYER CONTROLLER INTEGRATED WITH 1394A, 400MBPS, 2-PORT PHYSICAL LAYER (PHY)
Brand Texas Instruments
Moisture Sensitive Yes
Product Type 1394 Interface IC
Protocol Supported 1394
Factory Pack Quantity 90
Subcategory Interface ICs
Unit Weight 0.017760 oz

For more information, please refer to datasheet

Documents

TSB43AB22APDT Datasheet

More Information

The Texas Instruments TSB43AB22A device is an integrated 1394a-2000 OHCI PHY/link-layer controller (LLC) device that is fully compliant with the PCI Local Bus Specification, the PCI Bus Power Management Interface Specification, IEEE Std 1394-1995, IEEE Std 1394a-2000, and the 1394 Open Host Controller Interface Specification. It is capable of transferring data between the 33-MHz PCI bus and the 1394 bus at 100M bits/s, 200M bits/s, and 400M bits/s. The TSB43AB22A device provides two 1394 ports that have separate cable bias (TPBIAS). The TSB43AB22A device also supports the IEEE Std 1394a-2000 power-down features for battery-operated applications and arbitration enhancements.
