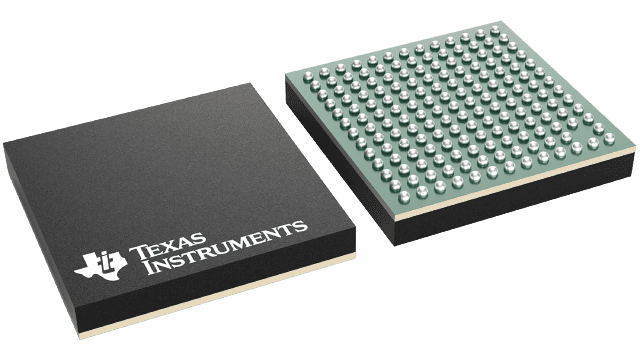

TSB81BA3EIZAJ


YeeHing #: Y007-TSB81BA3EIZAJ
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TSB81BA3EIZAJ Texas Instruments - Yeehing Electronics

IEEE P1394b 3-port cable transceiver arbiter

Pricing (USD)

Quantity Unit Price
1 — 99 8.006
100 — 249 6.527
250 — 999 5.13
1,000 + 3.05

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 1394 Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case NFBGA-168
Series TSB81BA3E
Product IEEE 1394a, 1394b
Type Three Port Cable Transceiver/Arbiter
Data Rate 800 Mb/s
Operating Supply Voltage 1.8 V to 3.3 V
Operating Supply Current 4 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tray
Description/Function IEEE P1394B THREE-PORT CABLE TRANSCEIVER ARBITER
Brand Texas Instruments
Moisture Sensitive Yes
Product Type 1394 Interface IC
Protocol Supported 1394
Factory Pack Quantity 260
Subcategory Interface ICs

For more information, please refer to datasheet

Documents

TSB81BA3EIZAJ Datasheet

More Information

The TSB81BA3E provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB81BA3E is designed to interface with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It also may be connected cable port to cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
