Texas Instruments
TSB81BA3EPFP
TSB81BA3EPFP
Couldn't load pickup availability
TSB81BA3EPFP Texas Instruments - Yeehing Electronics
IEEE P1394b 3-port cable transceiver arbiter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.34 |
| 100 — 249 | 5.984 |
| 250 — 999 | 4.703 |
| 1,000 + | 3.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | 0 |
| Maximum Operating Temperature | 70 |
| Factory Pack Quantity | 96 |

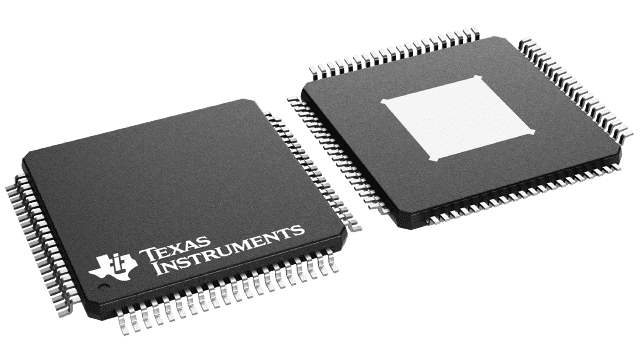

| Package | Pins | HTQFP (PFP) | 80 |
For more information, please refer to datasheet
Documents
| TSB81BA3EPFP Datasheet |
More Information
The TSB81BA3E provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB81BA3E is designed to interface with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It also may be connected cable port to cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
