TSB81BA3EZAJ Texas Instruments - Yeehing Electronics

IEEE P1394b 3-port cable transceiver arbiter

Pricing (USD)

Quantity	Unit Price
1 — 99	7.34
100 — 249	5.984
250 — 999	4.703
1,000 +	2.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	0
Maximum Operating Temperature	70
Factory Pack Quantity	260

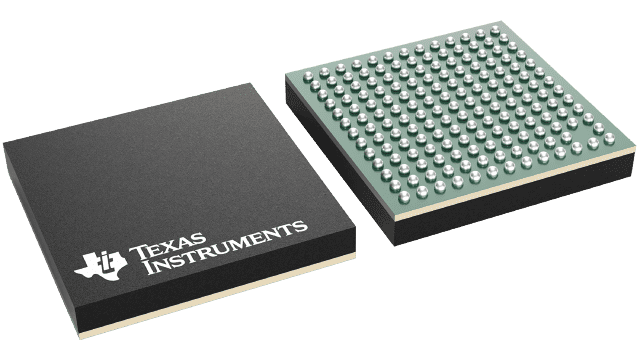

Package | Pins	NFBGA (ZAJ) | 168

For more information, please refer to datasheet

Documents

TSB81BA3EZAJ Datasheet

More Information

The TSB81BA3E provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB81BA3E is designed to interface with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It also may be connected cable port to cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
