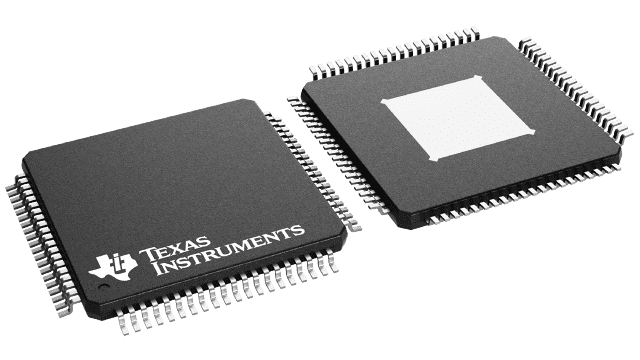

TSB81BA3IPFPEP


YeeHing #: Y007-TSB81BA3IPFPEP
Inventory: 3000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TSB81BA3IPFPEP Texas Instruments - Yeehing Electronics

Enhanced product IEEE 1394b 3-port cable transceiver/arbiter

Pricing (USD)

Quantity Unit Price
1 — 99 21.912
100 — 249 19.14
250 — 999 14.758
1,000 + 9.24

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 1394 Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case HTQFP-80
Series TSB81BA3-EP
Operating Supply Voltage 1.85 V to 2.05 V, 3 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tray
Description/Function ENHANCED PRODUCT IEEE1394B 3-PORT CABLE TRANSCEIVER/ARBITER
Brand Texas Instruments
Moisture Sensitive Yes
Product Type 1394 Interface IC
Factory Pack Quantity 96
Subcategory Interface ICs
Part # Aliases V62/04612-01XE
Unit Weight 0.012984 oz

For more information, please refer to datasheet

Documents

TSB81BA3IPFPEP Datasheet

More Information

The TSB81BA3 provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB81BA3 is designed to interface with a link-layer controller (LLC), such as the TSB82AA2, TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4, TSB42AB4, TSB12LV01B, or TSB12LV01C. It may also be connected cable port to cable port to an integrated 1394 Link + PHY layer such as the TSB43AB2.
