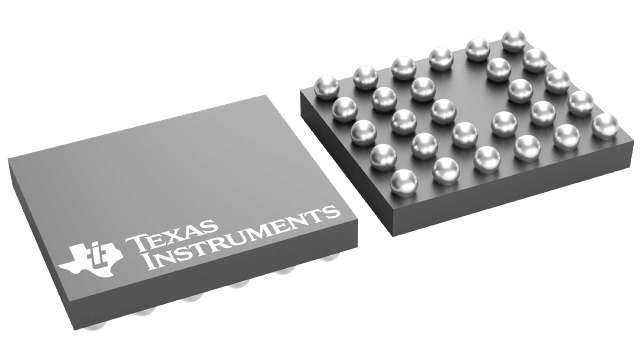

TSC2005IYZLT Texas Instruments - Yeehing Electronics

Nano-Power Touch Screen Controller with SPI Serial Interface

Pricing (USD)

Quantity	Unit Price
1 — 99	3.268
100 — 249	2.664
250 — 999	2.094
1,000 +	1.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Touch Screen Controllers
RoHS	Y
Series	TSC2005
Type	Resistive Touch Controller
Input Type	1 TSC
Sampling Rate	50 S/s
Resolution	10 bit, 12 bit
Interface Type	4-Wire, SPI
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.6 V
Operating Supply Current	383 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-28
Packaging	Reel
Brand	Texas Instruments
Operating Supply Voltage	1.6 V to 3.6 V
Product Type	Touch Screen Controllers
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.000325 oz

For more information, please refer to datasheet

Documents

TSC2005IYZLT Datasheet

More Information

The TSC2005 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. It works with a supply voltage as low as 1.6V, which can be supplied by a single-cell battery. It contains a complete, ultralow-power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure.
