Texas Instruments

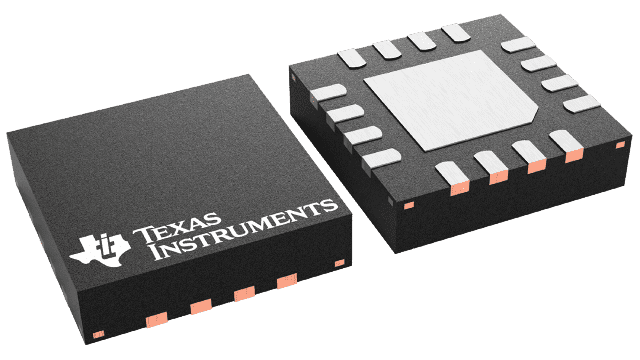

TSC2008IRGVT
TSC2008IRGVT
Regular price
$1.41 USD
Regular price
Sale price
$1.41 USD
Unit price
per
Couldn't load pickup availability
TSC2008IRGVT Texas Instruments - Yeehing Electronics
Nano-Power Touch Screen Controller with SPI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.708 |
| 100 — 249 | 3.023 |
| 250 — 999 | 2.376 |
| 1,000 + | 1.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Touch Screen Controllers |
| RoHS | Y |
| Series | TSC2008 |
| Type | Resistive Touch Controller |
| Input Type | 1 TSC |
| Sampling Rate | 20 kS/s |
| Resolution | 8 bit, 12 bit |
| Interface Type | 4-Wire, SPI |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.2 V |
| Operating Supply Current | 285 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 1.2 V to 3.6 V |
| Product Type | Touch Screen Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001764 oz |
For more information, please refer to datasheet
Documents
| TSC2008IRGVT Datasheet |
More Information
The TSC2008 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on advanced low-voltage processors. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure.
