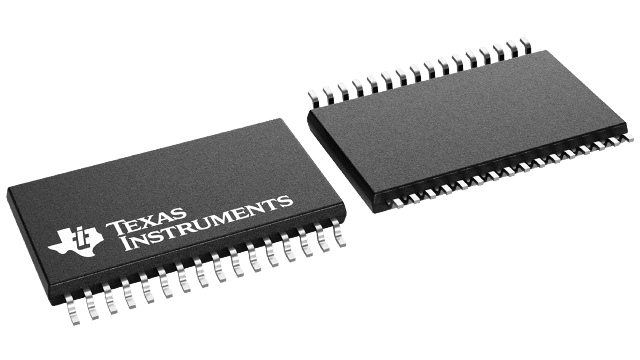

TSC2100IDA Texas Instruments - Yeehing Electronics

4-Wire Touch Screen Controller with Stereo DAC / Mono ADC with HP/Speaker Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	7.63
100 — 249	6.221
250 — 999	4.889
1,000 +	2.90

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Touch Screen Controllers
RoHS	Y
Series	TSC2100
Type	Resistive Touch Controller
Input Type	1 TSC
Sampling Rate	125 kS/s, 48 kS/s
Resolution	12 bit
Interface Type	4-Wire, I2S, Serial, SPI
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-32
Packaging	Tube
Features	Audio CODEC, Headphone Amplifier
Height	1.15 mm
Length	11 mm
Width	6.2 mm
Brand	Texas Instruments
Development Kit	TSC2100EVM
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 3.6 V
Product Type	Touch Screen Controllers
Factory Pack Quantity	46
Subcategory	Data Converter ICs
Unit Weight	0.006113 oz

For more information, please refer to datasheet

Documents

TSC2100IDA Datasheet

More Information

The TSC2100 is a highly integrated touch screen controller with on-chip processor and audio codec. The touch screen portion of the TSC2100 contains a 12-bit 4-wire resistive touch screen ADC complete with drivers, and interfaces to the host controller through a standard SPI™ serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.
