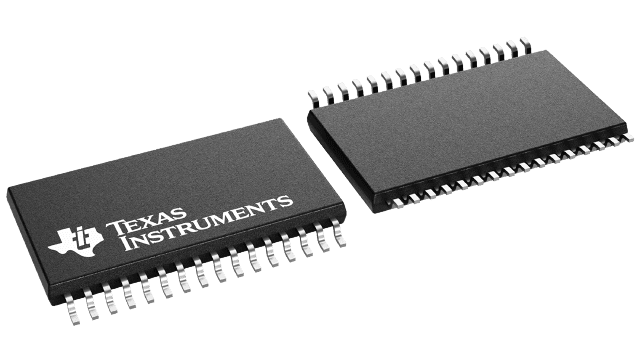

TSC2102IDA


YeeHing #: Y002-TSC2102IDA
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TSC2102IDA Texas Instruments - Yeehing Electronics

4-Wire Touch Screen Controller with Stereo DAC with HP Amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 5.7
100 — 249 4.647
250 — 999 3.653
1,000 + 2.17

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Touch Screen Controllers
RoHS Y
Series TSC2102
Type Resistive Touch Controller
Input Type 1 TSC
Sampling Rate 125 kS/s
Resolution 12 bit
Interface Type 4-Wire, I2S, Serial, SPI
Supply Voltage - Max 3.6 V
Supply Voltage - Min 2.7 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case TSSOP-32
Packaging Tube
Features Int. PLL
Height 1.15 mm
Length 11 mm
Width 6.2 mm
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 2.7 V to 3.6 V
Product Type Touch Screen Controllers
Factory Pack Quantity 46
Subcategory Data Converter ICs
Unit Weight 0.006113 oz

For more information, please refer to datasheet

Documents

TSC2102IDA Datasheet

More Information

The TSC2102 is a highly integrated combination resistive touch screen controller with on-chip processor and audio DAC. The touch screen portion of the TSC2102 contains a 12-bit 4-wire resistive touch screen converter complete with drivers, and interfaces to the host controller through a standard SPI™ serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.
