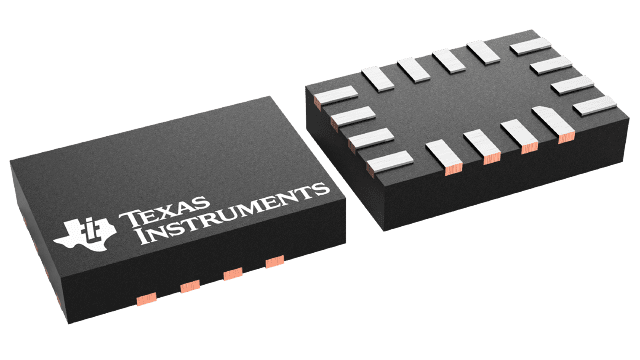

TSU6111ARSVR Texas Instruments - Yeehing Electronics

Dual SP2T Micro-USB Switch with integrated impedance and charger detection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.941
100 — 249	0.777
250 — 999	0.558
1,000 +	0.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Switch ICs
RoHS	Y
Product	USB 2.0, UART Switches
Configuration	2 x SPDT
On Resistance - Max	15 Ohms
On Time - Max	95 us
Off Time - Max	95000 ns
Operating Supply Voltage	3 V to 4.4 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	UQFN-16
Packaging	Reel
Bandwidth	920 MHz
Series	TSU6111A
Brand	Texas Instruments
Number of Switches	2 Switch
Operating Supply Current	30 uA
Product Type	USB Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	4.4 V
Supply Voltage - Min	3 V
Switch Continuous Current	60 mA
Unit Weight	0.001443 oz

For more information, please refer to datasheet

Documents

TSU6111ARSVR Datasheet

More Information

The TSU6111A is a high performance differential autonomous SP2T switch with impedance detection. The switch supports the detection of various accessories that are attached through DP, DM, and ID. The charger detection satisfies USB charger specification v1.1 and VBUS_IN has a 28V tolerance to eliminate the need for external protection. Power for this device is supplied through VBAT of the system or throughVBUS_IN when attached to a charger.
