Texas Instruments

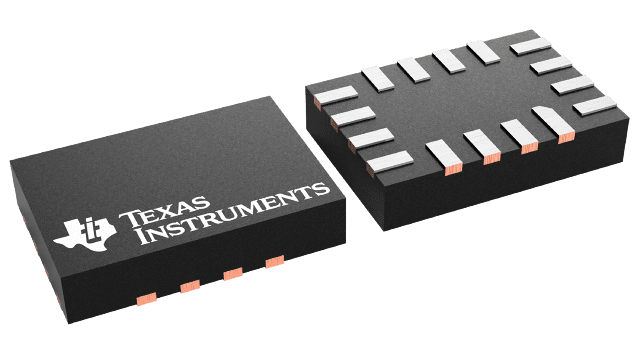

TSU6111RSVR
TSU6111RSVR
Regular price
$0.29 USD
Regular price
Sale price
$0.29 USD
Unit price
per
Couldn't load pickup availability
TSU6111RSVR Texas Instruments - Yeehing Electronics
Dual SP2T Micro-USB Switch with integrated impedance and charger detection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.941 |
| 100 — 249 | 0.777 |
| 250 — 999 | 0.558 |
| 1,000 + | 0.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0, UART Switches |
| Configuration | 2 x SPDT |
| On Resistance - Max | 15 Ohms |
| On Time - Max | 95 us |
| Off Time - Max | 95000 ns |
| Operating Supply Voltage | 3 V to 4.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Packaging | Reel |
| Bandwidth | 920 MHz |
| Series | TSU6111 |
| Brand | Texas Instruments |
| Number of Switches | 2 Switch |
| Operating Supply Current | 30 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 4.4 V |
| Supply Voltage - Min | 3 V |
| Switch Continuous Current | 60 mA |
| Unit Weight | 0.001443 oz |
For more information, please refer to datasheet
Documents
| TSU6111RSVR Datasheet |
More Information
The TSU6111 is a differential high performance automated SP2T switch with impedance detection. The switch features impedance detection which supports the detection of various accessories that are attached through DP, DM and ID. The charger detection satisfies USB charger specification v1.1. VBUS_IN has 28V tolerance to avoid external protection.
