Texas Instruments
TSU6721YFFR
TSU6721YFFR
Regular price
$0.31 USD
Regular price
Sale price
$0.31 USD
Unit price
per
Couldn't load pickup availability

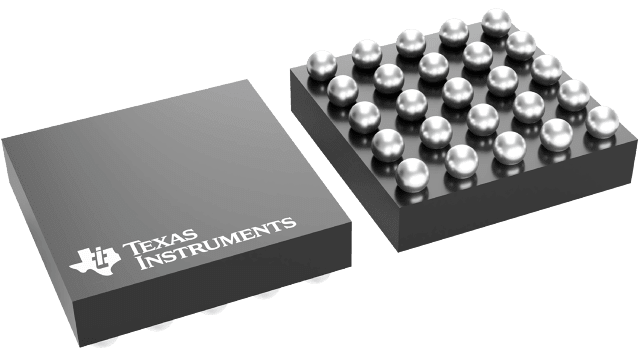

TSU6721YFFR Texas Instruments - Yeehing Electronics
USB Port Multimedia Load Switch Supports USB, UART, AUDIO, ID, MIC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.001 |
| 100 — 249 | 0.827 |
| 250 — 999 | 0.594 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0, Audio, UART Switches |
| Configuration | 1 x DP3T |
| On Resistance - Max | 14.3 Ohms |
| On Time - Max | 200 us |
| Off Time - Max | 100000 ns |
| Operating Supply Voltage | 3 V to 4.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-25 |
| Packaging | Reel |
| Bandwidth | 510 MHz, 450 MHz, 510 MHz |
| Series | TSU6721 |
| Brand | Texas Instruments |
| Development Kit | TSU6721EVM |
| Number of Switches | 2 Switch |
| Operating Supply Current | 50 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 4.4 V, 6.5 V |
| Supply Voltage - Min | 3 V, 4 V |
| Unit Weight | 0.000162 oz |
For more information, please refer to datasheet
Documents
| TSU6721YFFR Datasheet |
More Information
TSU6721 is a high performance USB port multimedia switch featuring automatic switching and accessory detection. The device connects a common USB port to pass audio, USB data, charging, On The Go (OTG) and factory mode signals. The audio path has negative signal capability includes left (mono/stereo), right (stereo) as well as microphone signals. Furthermore, TSU6721 is compatible with the MCPC specification.
