Texas Instruments
TSU8111YFPR
TSU8111YFPR
Regular price
$0.41 USD
Regular price
Sale price
$0.41 USD
Unit price
per
Couldn't load pickup availability
TSU8111YFPR Texas Instruments - Yeehing Electronics
Single Cell USB Charger with Two Integrated USB2.0 Switches and Accessory Detection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.317 |
| 100 — 249 | 1.088 |
| 250 — 999 | 0.781 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Switch ICs |
| RoHS | Y |
| Product | USB 2.0 Switches |
| Configuration | 2 x SPDT |
| On Resistance - Max | 8 Ohms |
| On Time - Max | 57 us |
| Off Time - Max | 57000 ns |
| Operating Supply Voltage | 1.65 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

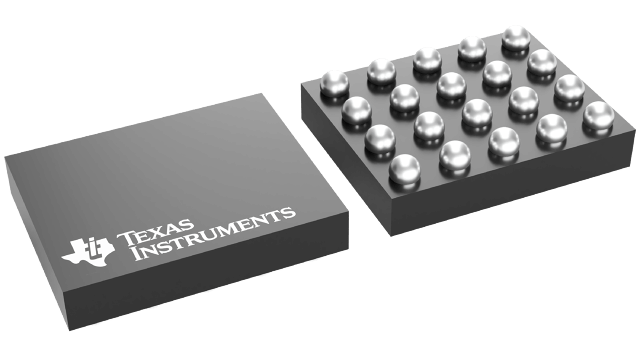

| Package / Case | DSBGA-20 |
| Packaging | Reel |
| Bandwidth | 820 MHz |
| Series | TSU8111 |
| Brand | Texas Instruments |
| Number of Switches | 2 Switch |
| Operating Supply Current | 36 uA |
| Product Type | USB Switch ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Switch Continuous Current | 60 mA |
For more information, please refer to datasheet
Documents
| TSU8111YFPR Datasheet |
More Information
The TSU8111 is a dual single-pole double-throw (SP2T) micro-USB switch with an integrated linear charger. The integrated charger eliminates the need for an external charger IC, reducing cost and board space. The device operates from either a USB port or dedicated charger and supports charging currents of up to 950 mA. Power for the device is supplied through VBAT or through VBUS when attached. The TSU8111 detects BCv1.1-compatible chargers as well as accessories that use an ID resistor. The USB switch matrix can be controlled either by automatic detection or manually through I2C.
