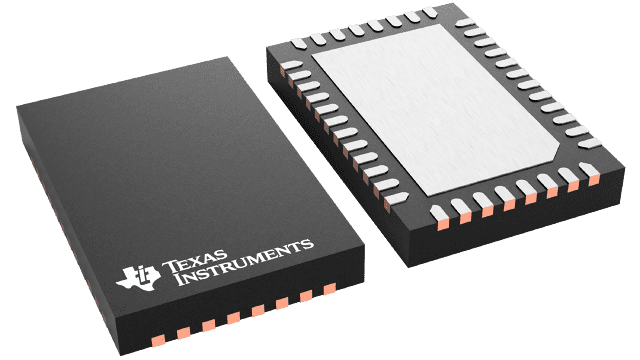

TUSB1042IRNQR Texas Instruments - Yeehing Electronics
10-Gbps USB Type-C 2:1 linear redriver switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.492 |
| 100 — 249 | 4.478 |
| 250 — 999 | 3.519 |
| 1,000 + | 2.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Series | TUSB1042I |
| Product | USB Redrivers |
| Type | Linear Redriver Crosspoint Switch |
| Port Type | DFP, DRP, UFP |
| Standard | USB 3.1 |
| Speed | Super Speed |
| Data Rate | 10 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Development Kit | TUSB1042EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.002610 oz |
For more information, please refer to datasheet
Documents
| TUSB1042IRNQR Datasheet |
More Information
The TUSB1042I is a redriving switch supporting USB 3.1 data rates up to 10 Gbps. The TUSB1042I provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3 V supply and comes in the industrial temperature range.
