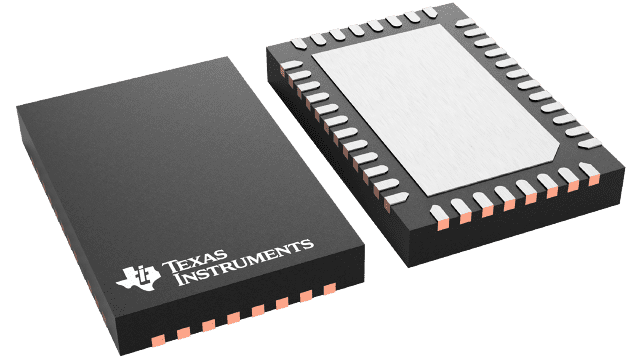

TUSB1046AI-DCIRNQR Texas Instruments - Yeehing Electronics
USB Type-C™ DP ALT Mode 10-Gbps linear redriver crosspoint switch for source side
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.871 |
| 100 — 249 | 5.601 |
| 250 — 999 | 4.402 |
| 1,000 + | 2.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Series | TUSB1046A-DCI |
| Product | USB Redrivers |
| Type | Linear Redriver Crosspoint Switch |
| Port Type | DFP |
| Standard | USB 3.1 |
| Speed | Super Speed |
| Data Rate | 10 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Product Type | USB Interface IC |
| Protocol Supported | Alternate Mode |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.002610 oz |
For more information, please refer to datasheet
Documents
| TUSB1046AI-DCIRNQR Datasheet |
More Information
The TUSB1046A-DCI is a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 10 Gbps and DisplayPort 1.4 up to 8.1 Gbps for downstream facing port (Host). The device is used for configurations C, D, E, and F from the VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.1. This protocol-agnostic linear redriver is also capable of supporting other USB Type-C Alt Mode interfaces.
