Description

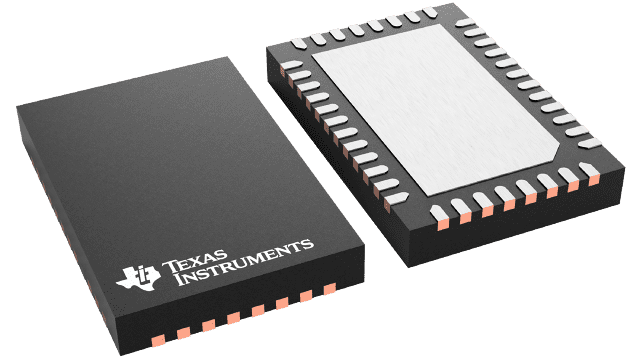

TUSB1064RNQR Texas Instruments - Yeehing Electronics
USB Type-C™ DP Alt Mode 10-Gbps linear redriver crosspoint switch for sink side
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.46 |
| 100 — 249 | 4.35 |
| 250 — 999 | 3.12 |
| 1,000 + | 2.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Series | TUSB1064 |
| Product | USB Redrivers |
| Type | Type-C |
| Standard | USB 3.1 |
| Speed | Super Speed |
| Data Rate | 10 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C, USB |
| Development Kit | TUSB1064RNQEVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | USB Interface IC |
| Protocol Supported | Alternate Mode |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| TUSB1064RNQR Datasheet |
More Information
The TUSB1064 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 10 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard.
