Texas Instruments
TUSB2036VFR
TUSB2036VFR
Couldn't load pickup availability

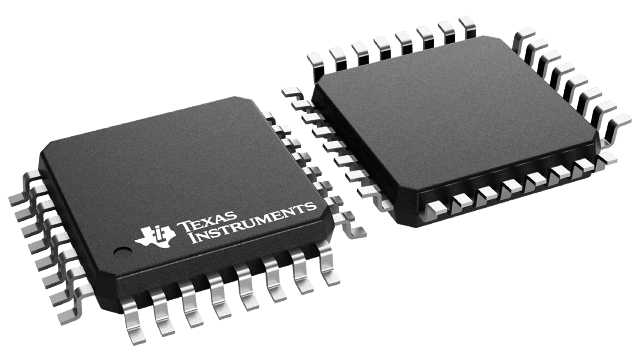

TUSB2036VFR Texas Instruments - Yeehing Electronics
2/3-port 12-Mbps USB full-speed hub with optional serial EEPROM interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.319 |
| 100 — 249 | 2.032 |
| 250 — 999 | 1.425 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Series | TUSB2036 |
| Product | USB Hubs |
| Type | Hub Controller |
| Standard | USB 1.1 |
| Speed | Full Speed |
| Data Rate | 12 Mb/s |
| Operating Supply Current | 40 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | Serial |
| Number of Ports | 3 Port |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.006148 oz |
For more information, please refer to datasheet
Documents
| TUSB2036VFR Datasheet |
More Information
The TUSB2036 hub is a 3.3-V CMOS device that provides up to three downstream ports in compliance with the USB 2.0 specification. Because this device is implemented with a digital state machine instead of a microcontroller, no firmware programming is required. Fully-compliant USB transceivers are integrated into the ASIC for all upstream and downstream ports. The downstream ports support both full-speed and low-speed devices by automatically setting the slew rate according to the speed of the device attached to the ports. The configuration of the BUSPWR pin selects either the bus-powered or the self-powered mode. The introduction of the DP0 pullup resistor disable pin, DP0PUR, makes it much easier to implement an onboard bus/self-power dynamic-switching circuitry. With the new function pin, the end-equipment vendor can reduce the total board cost while adding additional product value.
