TUSB319IDRFRQ1 Texas Instruments - Yeehing Electronics

Automotive USB Type-C DFP Port Controller

Pricing (USD)

Quantity	Unit Price
1 — 99	1.04
100 — 249	0.8
250 — 999	0.589
1,000 +	0.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT

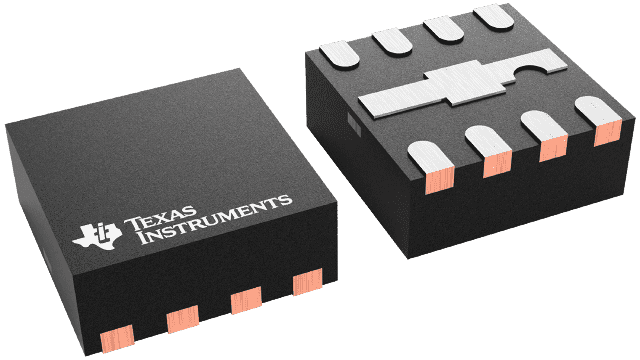

Package / Case	WSON-8
Series	TUSB319-Q1
Product	USB Controllers
Port Type	DFP
Standard	USB 3.1
Supply Voltage - Min	3.8 V
Supply Voltage - Max	5.5 V
Operating Supply Current	330 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Qualification	AEC-Q100
Packaging	Reel
Brand	Texas Instruments
Interface Type	USB
Number of Ports	1 Port
Moisture Sensitive	Yes
Operating Supply Voltage	3.8 V to 5.5 V
Product Type	USB Interface IC
Factory Pack Quantity	3000
Subcategory	Interface ICs
Tradename	USB Type-C
Unit Weight	0.000420 oz

For more information, please refer to datasheet

Documents

TUSB319IDRFRQ1 Datasheet

More Information

The TUSB319-Q1 is a USB Type-C Downstream Facing Port (DFP) controller. The TUSB319-Q1 monitors the USB Type-C Configuration Channel (CC) lines to determine when an USB device is attached. If an Upstream Facing Port (UFP) device is attached, the TUSB319-Q1 drives an open drain output ID that can be used in the system to apply VBUS power. The device also communicates the selectable VBUS current sourcing capability to the UFP via the CC lines.
