Texas Instruments
TUSB320LIRWBR
TUSB320LIRWBR
Regular price
$0.46 USD
Regular price
Sale price
$0.46 USD
Unit price
per
Couldn't load pickup availability

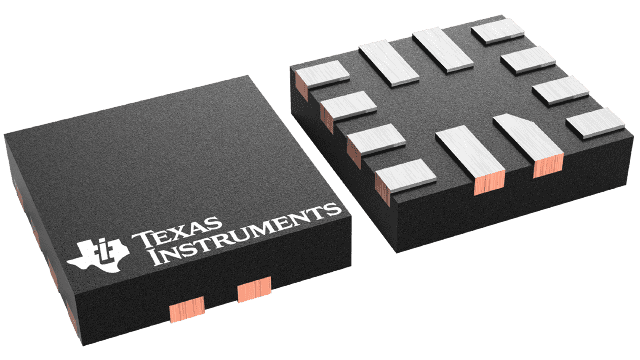

TUSB320LIRWBR Texas Instruments - Yeehing Electronics
USB Type-C Configuration Channel Logic and Port Control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.472 |
| 100 — 249 | 1.215 |
| 250 — 999 | 0.873 |
| 1,000 + | 0.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | X2QFN-12 |
| Series | TUSB320LI |
| Product | USB Controllers |
| Type | Type-C |
| Port Type | DFP |
| Standard | USB-C 1.1 |
| Speed | High Speed |
| Data Rate | 480 Mb/s |
| Operating Supply Current | 100 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C, GPIO |
| Number of Ports | 1 Port |
| Core | None |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.000176 oz |
For more information, please refer to datasheet
Documents
| TUSB320LIRWBR Datasheet |
More Information
The TUSB320LI and TUSB320HI devices (remainder of this document called TUSB320 unless otherwise noted) enables USB Type-C ports with the configuration channel (CC) logic needed for Type-C ecosystems. The TUSB320 devices use the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB320 devices can be configured as a downstream facing port (DFP), upstream facing port (UFP) or a dual role port (DRP) making it ideal for any application.
