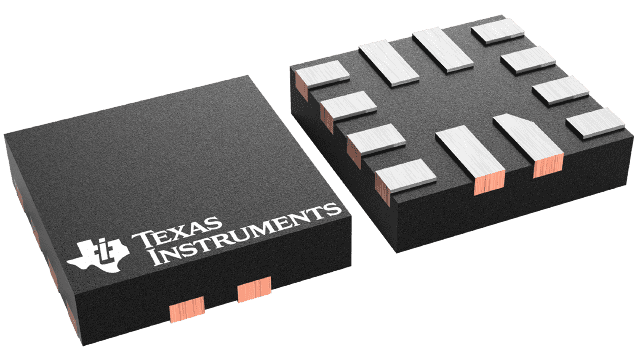

TUSB321AIRWBR Texas Instruments - Yeehing Electronics

USB Type-C Configuration Channel Logic and Port Control with VCONN

Pricing (USD)

Quantity	Unit Price
1 — 99	1.628
100 — 249	1.427
250 — 999	1.0
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	X2QFN-12
Series	TUSB321AI
Product	USB Controllers
Type	Type-C
Port Type	DFP
Standard	USB-C 1.1
Speed	Super Speed
Data Rate	5 Gb/s
Operating Supply Current	70 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Number of Ports	1 Port
Core	None
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Product Type	USB Interface IC
Factory Pack Quantity	3000
Subcategory	Interface ICs
Tradename	USB Type-C
Unit Weight	0.000176 oz

For more information, please refer to datasheet

Documents

TUSB321AIRWBR Datasheet

More Information

The TUSB321AI device enables USB Type-C ports with the configuration channel (CC) logic needed for Type-C ecosystems. The TUSB321AI device uses the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB321AI device can be configured as a downstream facing port (DFP), upstream facing port (UFP) or a dual role port (DRP) making it ideal for any application.
