Texas Instruments
TUSB4020BIPHPQ1
TUSB4020BIPHPQ1
Regular price
$4.80 USD
Regular price
Sale price
$4.80 USD
Unit price
per
Couldn't load pickup availability

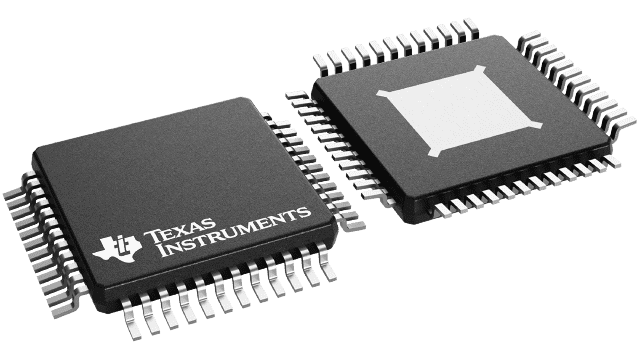

TUSB4020BIPHPQ1 Texas Instruments - Yeehing Electronics
Automotive Two-Port High-Speed 480Mbps USB 2.0 Hub
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.647 |
| 100 — 249 | 4.604 |
| 250 — 999 | 3.618 |
| 1,000 + | 4.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Series | TUSB4020BI-Q1 |
| Product | USB Controllers |
| Type | Hub Controller |
| Standard | USB 2.0 |
| Speed | High Speed |
| Data Rate | 480 Mb/s |
| Operating Supply Current | 15 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Qualification | AEC-Q100 |
| Packaging | Tube |
| Brand | Texas Instruments |
| Interface Type | I2C/SMBus |
| Number of Ports | 2 Port |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.1 V, 3.3 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| TUSB4020BIPHPQ1 Datasheet |
More Information
The TUSB4020BI-Q1 is a two-port USB 2.0 hub. It provides USB high-speed/full-speed connections on the upstream port and provides high-speed, full-speed, or low-speed connections on the two downstream ports. When the upstream port is connected to an electrical environment that supports high-speed and full-speed/low-speed connections, high-speed and full-speed/low-speed USB connectivity is enabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, high-speed connectivity are disabled on the downstream ports.
