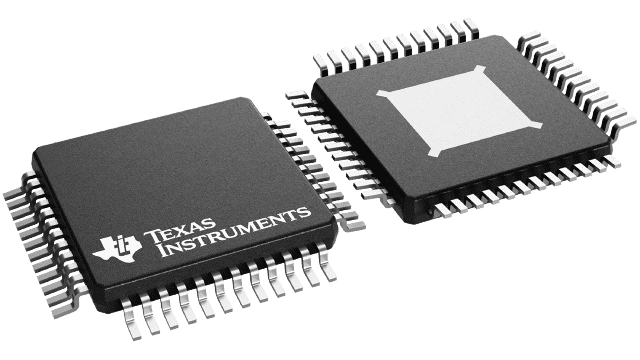

TUSB4020BIPHPRQ1 Texas Instruments - Yeehing Electronics

Automotive Two-Port High-Speed 480Mbps USB 2.0 Hub

Pricing (USD)

Quantity	Unit Price
1 — 99	4.918
100 — 249	4.01
250 — 999	3.151
1,000 +	1.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTQFP-48
Series	TUSB4020BI-Q1
Product	USB Controllers
Standard	USB 2.0
Speed	High Speed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Qualification	AEC-Q100
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	USB Interface IC
Factory Pack Quantity	1000
Subcategory	Interface ICs
Unit Weight	0.005087 oz

For more information, please refer to datasheet

Documents

TUSB4020BIPHPRQ1 Datasheet

More Information

The TUSB4020BI-Q1 is a two-port USB 2.0 hub. It provides USB high-speed/full-speed connections on the upstream port and provides high-speed, full-speed, or low-speed connections on the two downstream ports. When the upstream port is connected to an electrical environment that supports high-speed and full-speed/low-speed connections, high-speed and full-speed/low-speed USB connectivity is enabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, high-speed connectivity are disabled on the downstream ports.
