Texas Instruments

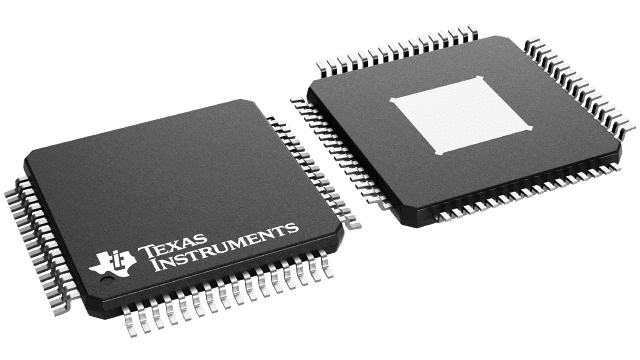

TUSB4041IPAP
TUSB4041IPAP
Couldn't load pickup availability
TUSB4041IPAP Texas Instruments - Yeehing Electronics
4-port high-speed 480-Mbps USB 2.0 hub
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.349 |
| 100 — 249 | 4.361 |
| 250 — 999 | 3.427 |
| 1,000 + | 2.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Series | TUSB4041I |
| Product | USB Hubs |
| Type | Hub Controller |
| Standard | USB 2.0 |
| Speed | High Speed |
| Operating Supply Current | 15 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C, SMBus |
| Number of Ports | 4 Port |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.1 V, 3.3 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
| TUSB4041IPAP Datasheet |
More Information
The TUSB4041I device is a four-port USB 2.0 hub. The device provides USB high-speed or full-speed connections on the upstream port. The device also provides USB high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed, full-speed, and low-speed connections, the USB high-speed, full-speed and low-speed connectivity is enabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed or low-speed connections, the USB high-speed connectivity are disabled on the downstream ports.
